Lightning Protection System

Conventional Lightning Protection System – Residential Project, Ambattur

Project Location: Ambattur, Chennai
Client Type: Residential Building
System Type: Conventional Lightning Protection System
Completion Year: July 2025
Scope: Design, Supply, Installation & Commissioning

Project Overview:

We successfully executed the design and installation of a conventional lightning protection system for a residential building located in Ambattur, Chennai. The primary objective was to provide a safe discharge path for lightning strikes and ensure the structural and occupant safety of the building.

Scope of Work Included:

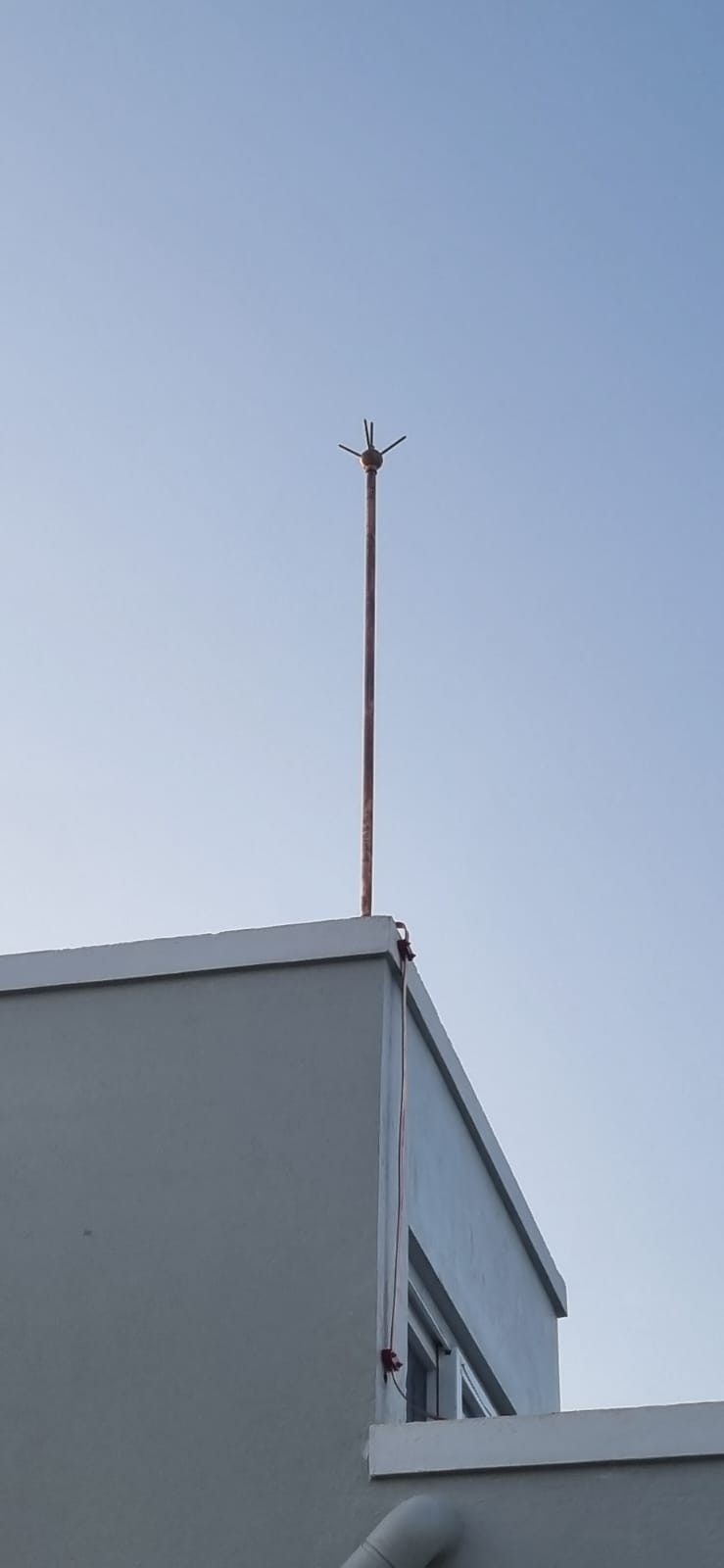

• Supply and installation of air terminals (lightning arresters) at terrace level.

• 25×3 mm Cu strips laid externally from air terminal to earth pit.

• Installation of maintenance-free chemical earthing system (1 No.).

• Clamping and routing of down conductors along the wall surface.

• Earth resistance test and commissioning report submission.




Technical Highlights:

• Coverage designed as per standards.

• Vertical air terminals positioned to ensure complete cone of protection.

• Earth pits tested to maintain resistance below 1 ohm.

•


  Client Benefits:

• Enhanced safety from lightning-induced damages.

• Maintenance-free and long-lasting earthing system.

• Full compliance with national and local electrical safety norms.
